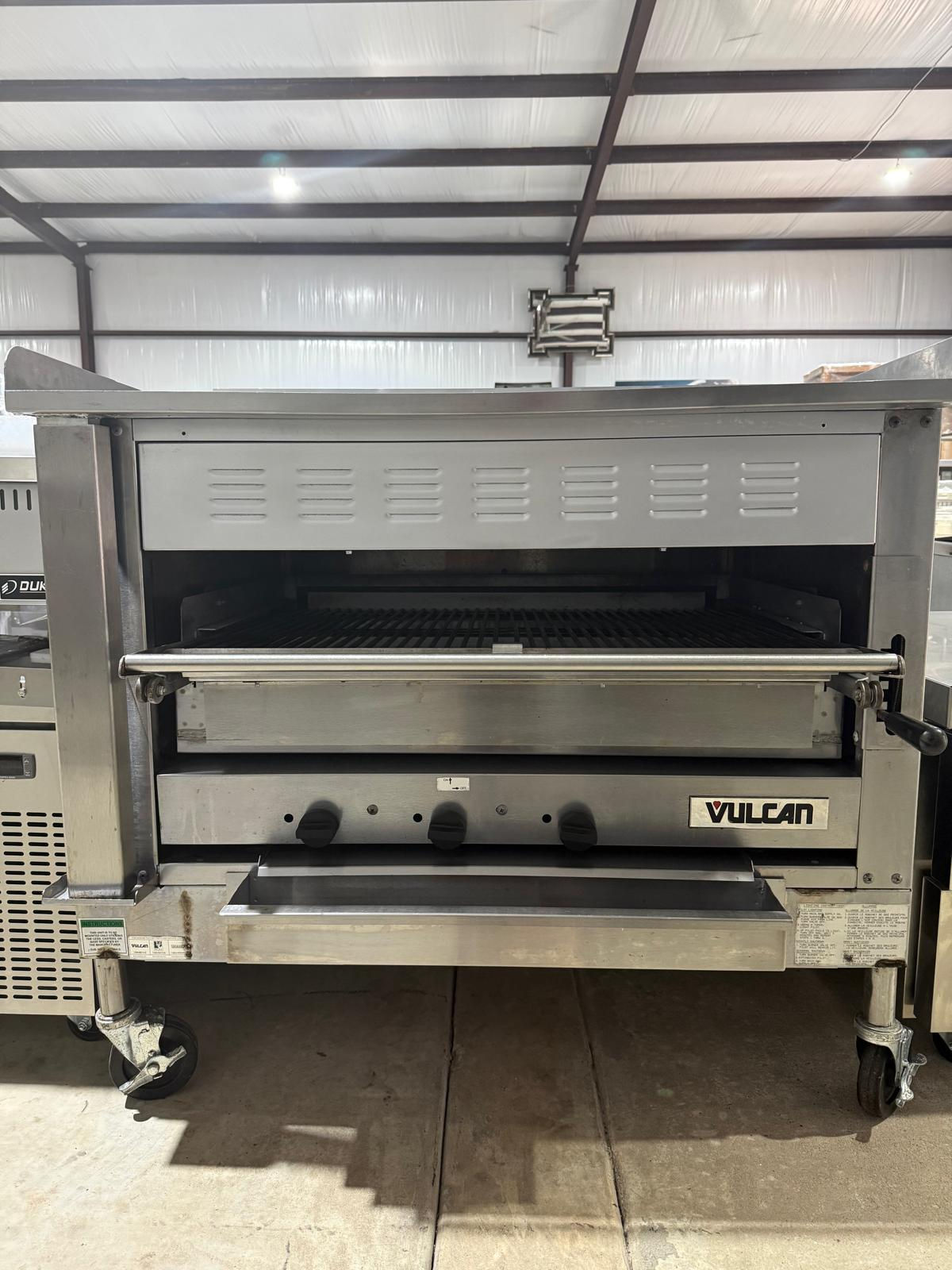

Vulcan VST4B Description
Heavy Duty Chophouse Broiler, 45" wide, gas, (3) 45,000 BTU burners, over-fired deck type, 4-position adjustable broiler grid, 1/2" certified griddle plate on top with 2" side & backsplashes, front grease trough, stainless steel front, sides, legs & undershelf, casters, 135,000 BTU, CSA, NSF
Heavy Duty Chophouse Broiler, 45" wide, gas, (3) 45,000 BTU burners, over-fired deck type, 4-position adjustable broiler grid, 1/2" certified griddle plate on top with 2" side & backsplashes, front grease trough, stainless steel front, sides, legs & undershelf, casters, 135,000 BTU, CSA, NSF, Salamander Broilers
Standard Features:
Griddle/broiler brush.
Standing pilot ignition system.
Three infinite heat control valves.
3⁄4" diameter rear gas connection.
1⁄2" griddle plate with 2" splashers.
One year limited parts and labor warranty.
Standard 56" high griddle cooking surface.
Three 45,000 BTU/hr. ceramic burners, 135,000 BTU/hr. input.
Stainless steel front, sides, leg stand, with 6" casters and shelf.
Front mounted grease receptacle and side mounted hanging grease container for griddle plate.
Floating grid rack assembly with positive positioning control handle. Four grid positions. Broiler grid measures 35 1⁄2"w x 27"d.
Options
4" shorter leg stand with casters.
Accessories
Additional griddle/broiler brush.
3⁄4" x 4 foot quick disconnect hose with restraining device.
Specifications
Heavy-duty single section gas over fired ceramic broiler with 1⁄2" griddle plate, Vulcan-Hart Model No. VST4B. Stainless steel front, sides, leg stand and 6" high caters with 5" wheels. 3⁄4" diameter rear gas connection, supplied with 3⁄4" regulator. Three 45,000 BTU/hr. ceramic burner, 135,000 BTU/hr. input. Standing pilot ignition system. Three infinite heat control valves. Floating grid rack assembly with positive positioning control handle. Four grid positions. Achieves 950° across the cooking grid. Achieves 650° across the griddle top. Broiler grid measures 35 1⁄2"w x 27"d. Exterior Dimensions: 45 1⁄2"w x 34 3⁄16"d x 56 1⁄4"h on leg stand with casters. CSA design certified. NSF listed.
Vulcan VST4B Specifications
Total BTU
20000 - 69500
Heating Source
Ceramic
Installation Type
Freestanding
Base Style
Mobile Stand
Range Base Style
Mobile Stand
Brand
Vulcan
Made in
USA
Certifications
NSF
Warming Oven
Without
Number of Burners
3
BTU
45,000 BTU
Exterior Finish
Stainless Steel Front & Sides
Base
Open Stand W/undershelf
Category
Broiler, Deck-Type, Gas
Design
Free Standing
Heat
Gas
Style
Single
Width (in)
45.5
Height (in)
42
Depth (in)
34.19
Weight
1250
